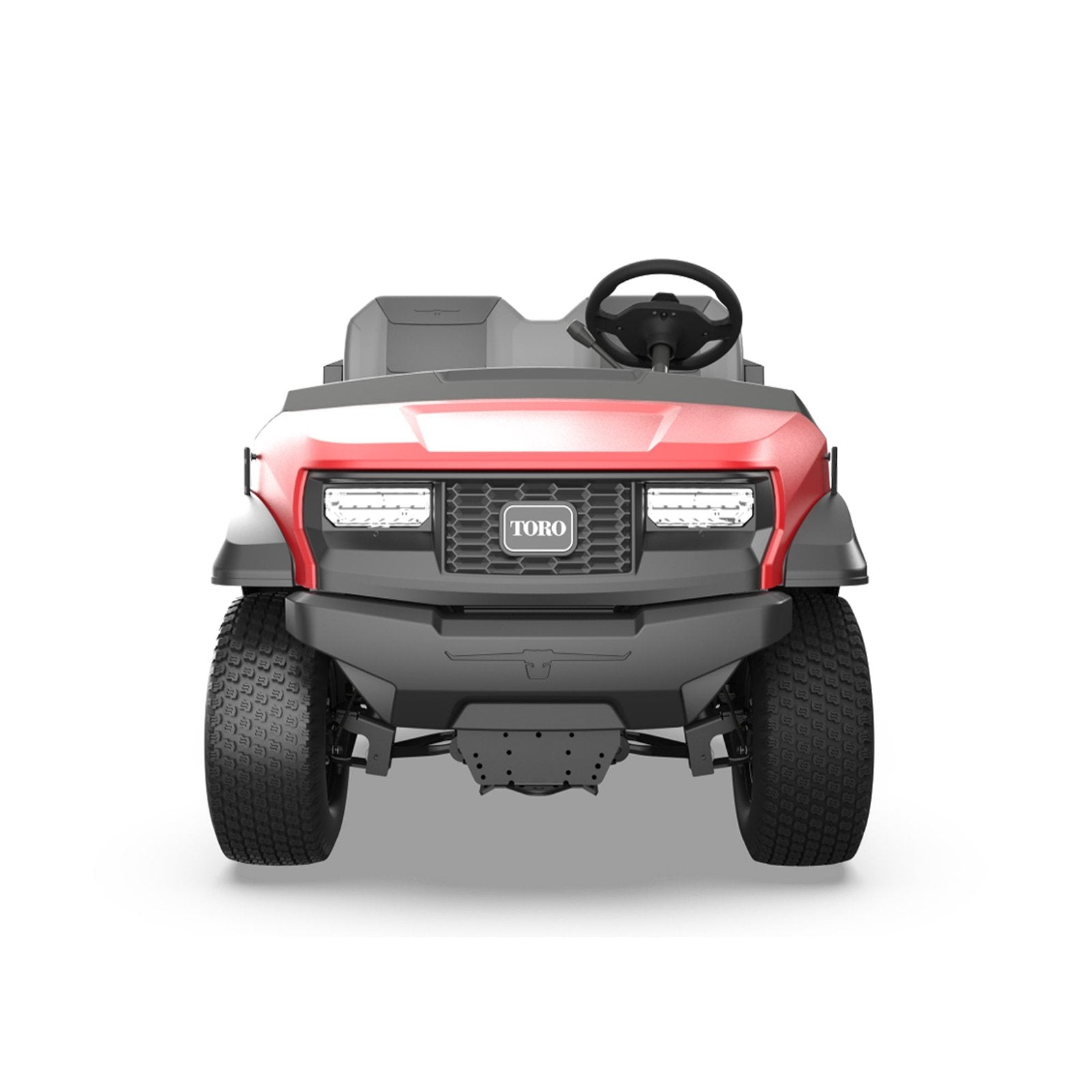

The next generation of light-duty utility vehicles is here. The new Workman LTX delivers everything you asked for - power, comfort, and elevated design. Powered by either the Briggs & Stratton Vanguard 400 EFI gasoline engine or the Toro HyperCell lithium battery system, the LTX offers standard height, lifted, or extended models to help you tackle your toughest days. With abundant storage, enhanced options, optimal design, and rugged reliability, you don’t have to choose between strength and versatility. The Toro Workman LTX provides both because your work deserves the best.
Battery: One 12V starter battery
Brakes - Front: Hydraulic Disc
Brakes - Rear: Hydraulic disc
Cooling System: Air Cooled
Crated Model: No
Displacement: 408cc (24.9 ci)
Drivetrain: Gas
Frame: Power coated, welded steel channel and tube.
Fuel / Power Source: Gasoline
Fuel Capacity: 5 gallons (18.9 liters)
Gauges/Instrumentation: LCD display, USB A & C power ports, headlight switch, on/off ignition key switch, horn switch, cup holders, radio holder, and large storage compartments throughout dash.
Ground Clearance: Front: 9" (22.8 cm)
Rear: 6" (15.2 cm)
Height: 4-Seat with Bed: 50.2" (127 cm)
2-Seat with 6' Flat Bed: 50.2" (127 cm)
Horn: Standard
Inside Turning Radius: 100" (254 cm)
Lights: Standard LED Headlights
Optional Accessories: Canopy, folding windshield, windshield w/ wiper, seat kit for EX models, steel cargo bed, plastic cargo bed, 6-foot flat bed, bed sides, electric bed lift, bed racking, brush guard, brush guard w/ front receiver, trash can mount, ROPS certified cab, cab doors, light options for cab (work lights and beacon), range cage, canopy with ROPS, mirrors, brake/tail/signal lights, back up alarm, under hood storage kit, ram mount ball, 12V power point kit, all-terrain tire kit, telematics kit. Allied accessories: drop-in beverage cart, Kimtek medical bed, Rahn Groomer
Outside Turning Radius: 31' (9.45 m)
Power Steering: No
Power Train (Engine Description): 408cc, air-cooled, single cylinder Briggs & Stratton® EFI gasoline engine.
Product Length: 4-Seat with Bed: 144" (366 cm)
2-Seat with 6' Flat Bed: 156" (396 cm)
Rear Draw Bar: Standard
Roll-Over Protection (ROPS): Optional
Starting: Pedal or Key Start
Steering System Description: Manual rack and pinion steering system with ergonomically positioned column. Steering wheel has 2.75 turns lock-to-lock with 13.75” (35 cm) diameter.
Suspension - Front: Modified MacPherson Strut.
Suspension - Rear: Articulating Swing Arm. Adjustable coil over shocks at all four wheels.
Suspension Travel - Front: 3.5" (8.9 cm)
Suspension Travel - Rear: 4" (10.2 cm)
Tires - Front: 20" x 8" - 10", 4-ply. Or alternate 4-ply/6-ply
Tires - Rear: 20" x 8" - 10", 4-ply. Or alternate 4-ply/6-ply
Total Vehicle Capacity: 1,200 lbs. (544 kg)
Towing Capacity: 1,500 lbs. (680 kg)
Traction Drive (System): 2WD
Transaxle: 11.47:1 Forward, 14.35:1 Reverse.
Vehicle Configuration: Extended
Vehicle Type: Light Duty
Weight: 2-Seat with Bed: 1116 lbs. (506 kg)
2-Seat with 6' Flat Bed: 1,190 lbs. (540 kg)
Wheelbase: 4-Seat with Bed: 114" (290 cm)
2-Seat with 6' Flat Bed: 114" (290 cm)
