| Key Specs |

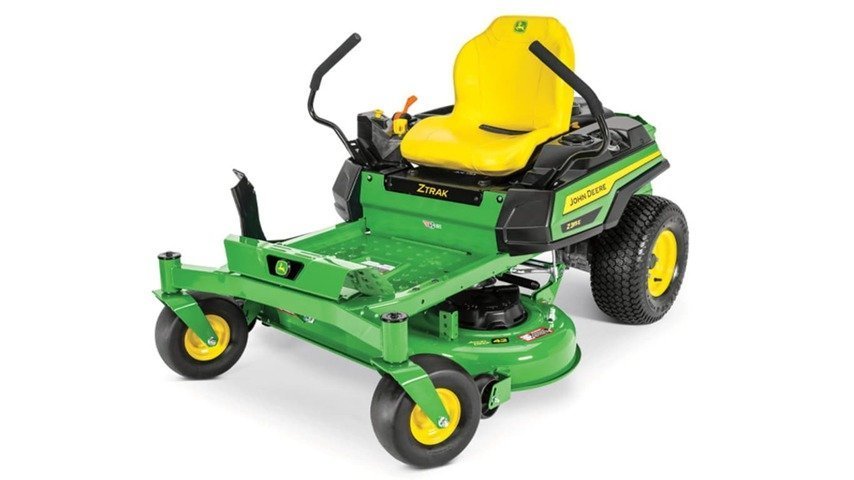

z315e-ztrak-mower
Current Model |
| Engine power |
20 hp
14.9 kW |
| Engine model number |
40 EXi |
| Forward speed |
0-7 mph
0-11.3 km/h |
| Front caster tires |
11×6-5 |
| Drive tires |
18×8.5-8 |
| Seat back height |
High back with optional armrests, 18 in.
46 cm |
| Width of cut |
Accel Deep™ mower deck, 42 in.
107 cm |
| Mulching system |
Optional MulchControl™ attachment |
| Warranty |
3 year or 200 hour bumper-to bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.) |
| Engine |
|
| Power |
20 hp
14.9 kW |
| Model number |
40 EXi |
| Displacement |
40 cu in.
656 cc |
| Cylinders |
V-twin |
| Lubrication |
Full pressure with replaceable filter, capacity, 2 U.S. qt
1.9 L |
| Type |
Overhead valve |
| Battery |
12 V
300 CCA |
| Choke/speed control |
Single lever |
| Cooling method |
Air |
| Fuel tank capacity |
3 U.S. gal.
11.4 L |
| Fuel gauge |
Translucent tank |
| Drive train |
|
| Dual hydros |
Hydro-Gear EZT-C with 1-in. (2.5-cm) axles |
| Hydraulic pumps |
|
| Wheel motors |
|
| Travel speed |
|
| Forward speed |
0-7 mph
0-11.3 km/h |
| Reverse speed |
0-3.5 mph
0-5.6 km/h |
| Speed and direction control |
Twin levers |
| Control adjustment |
3 height, 11 positions |
| Chassis |
|
| Frame |
Heavy-duty 2.5-in. x 2-in. (6-cm x 5-cm) front, and 1.5-in. x 2-in. (4-cm x 5-cm) side tubing |
| Primer/paint |
E-coat/powder |
| Front caster tires |
11×6-5 |
| Front caster bearings |
Sealed ball bearings |
| Drive tires |
18×8.5-8 |
| Hour meter |
Yes |
| Service interval decal |
Yes |
| Storage compartment |
Optional covered |
| Cup holder |
Yes |
| Maximum towing capacity |
250 lb
113 kg |
| Seat |
|
| Seat back height |
High back with optional armrests, 18 in.
46 cm |
| Fore-aft adjustment |
2.9 in.
7 cm |
| Seat suspension |
Two springs |
| Lift system |
|
| Type |
Foot lift |
| Mower cut height |
1.25-4.5 in.
3-11 cm |
| Cut height increments |
0.25 in.
0.64 cm |
| Preset cut height |
Yes |
| Mower deck |
|
| Width of cut |
Accel Deep™ mower deck, 42 in.
107 cm |
| Type |
Side discharge |
| Mower deck material |
12 gauge
0.105 in.
2.7 mm |
| Mower drive system |
V-belt |
| PTO |
|
| Type |
Electric, 105 lb-ft
142 Nm |
| Drive |
V-belt |
| Dimensions |
|
| Wheelbase |
49.4 in.
1255 mm |
| Overall length |
75.4 in.
1915 mm |
| Width without mower |
43.3 in.
1100 mm |
| Width with mower |
50.4 in.
1280 mm |
| Width with mower (deflector raised for storage) |
46.5 in.
1180 mm |
| Height |
41.6 in.
1056 mm |
| Weight |
554 lb
252 kg |
| Operation |
|
| Rollover protective structure (ROPS) |
No |
| Slope operating limit |
13 degrees; 10 degrees with Material Collection System |
| Operator presence system |
Yes |
| Park brake interlock |
Yes |
| Operator video |
Yes, online |
| Buyer's notes |
|
| Note 1 |
Durable Accel Deep Mower Decks are made from 12-gauge steel with double captured mower wheels |
| Note 2 |
Easily change cut height from 1.25 to 4.5 in. (3 to 11 cm) using the foot lift and cutting height dial |
| Note 3 |
Integrated park brake is automatically applied when steering levers are stowed outward |
| Warranty |
3 year or 200 hour bumper-to bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.) |
| Optional attachments |
|
| Mulching system |
Optional MulchControl™ attachment |
| Rubber floor mat |
Optional |
| Sun shade |
Optional |
| Mounted sprayer |
Not available |
| Storage cover |
Optional |
| Light kit |
Optional |
| Material collection system |
Two-bag cut-and-throw MCS, 6.5 bu
229 L |
